  • RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC
  • RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC
  • RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC
  • RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC
RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC

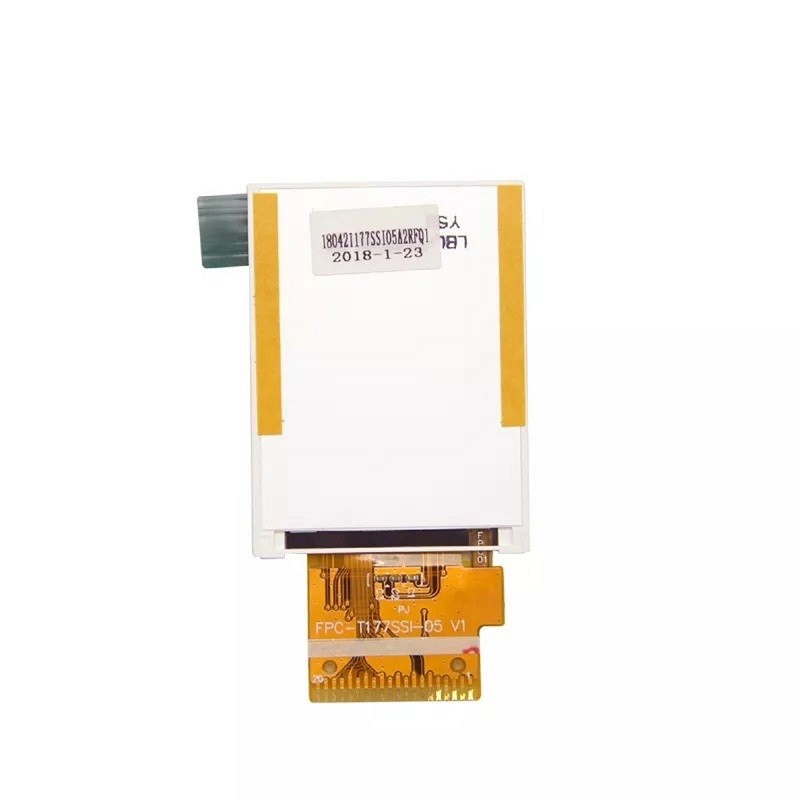

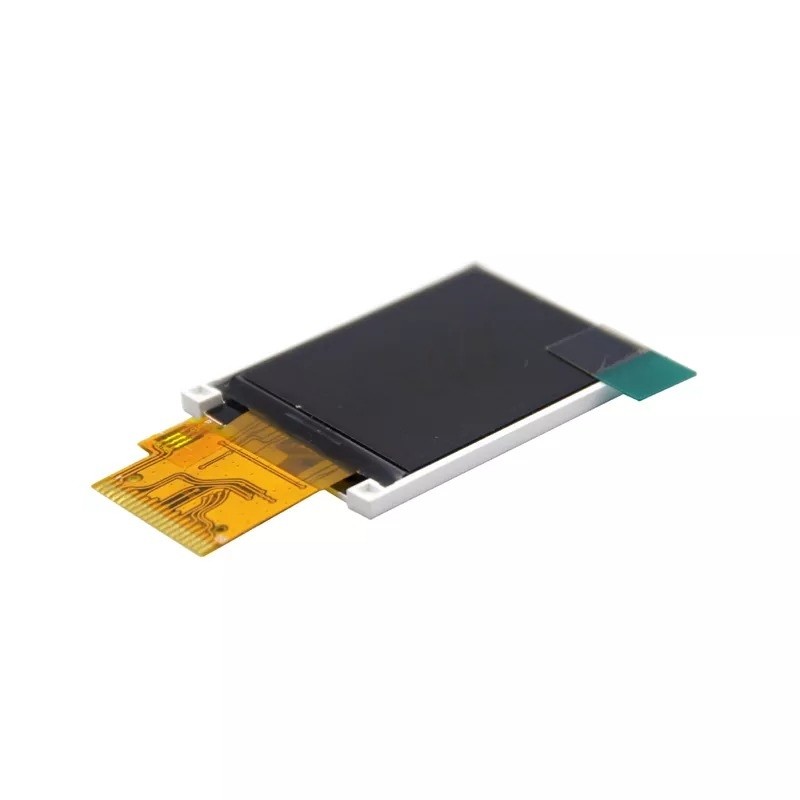

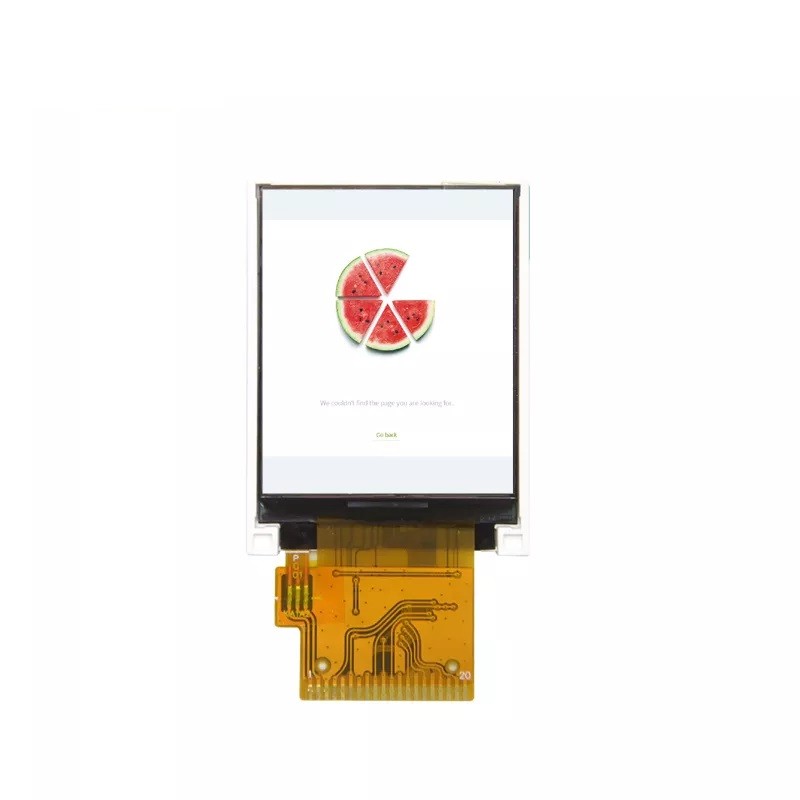

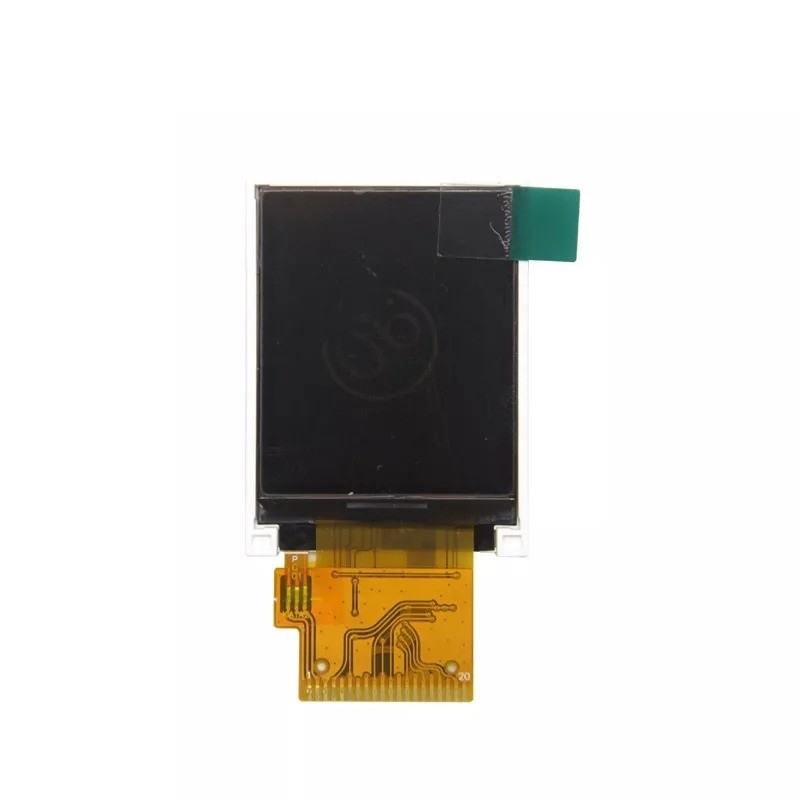

RG177SSI-05 1.77 inch 128*160 TFT LCD Module With ILI9163V IC

  • Product Item : RG177SSI-05
  • Category: 1.77 INCH LCD SCREEN
  • Resolution: 128*(RGB)*160
  • Luminance: 220nits
  • LCM (W * H * D): 34.70*46.70*2.60mm
  • LCM Driver IC: ILI9163V
  • INQUIRY   EMAIL
Product Description:
Feature Specification Unit
Brand Ronen -
Size 1.77 inch
Resolution 128*160 dots
Pixel pitch 0.219(H)*0.219(V) mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 220 cd/m2
LCM (W * H * D) 34.70*46.70*2.60 mm
Active Area (W * H ) 28.03*35.04 mm
With /Without TP Without TP -
LED Numbers 2-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface MCU-8bit/20PIN -
LCM Power Supply 2.8 V
LED  Power Supply 3 V
Color Depth 262K -
LCM Driver IC ILI9163V -
