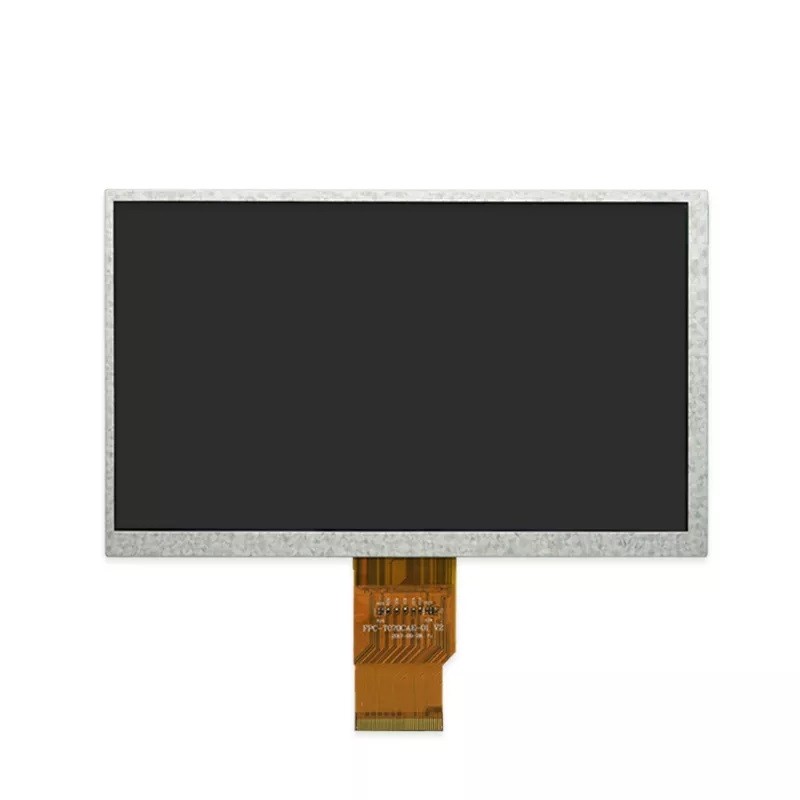

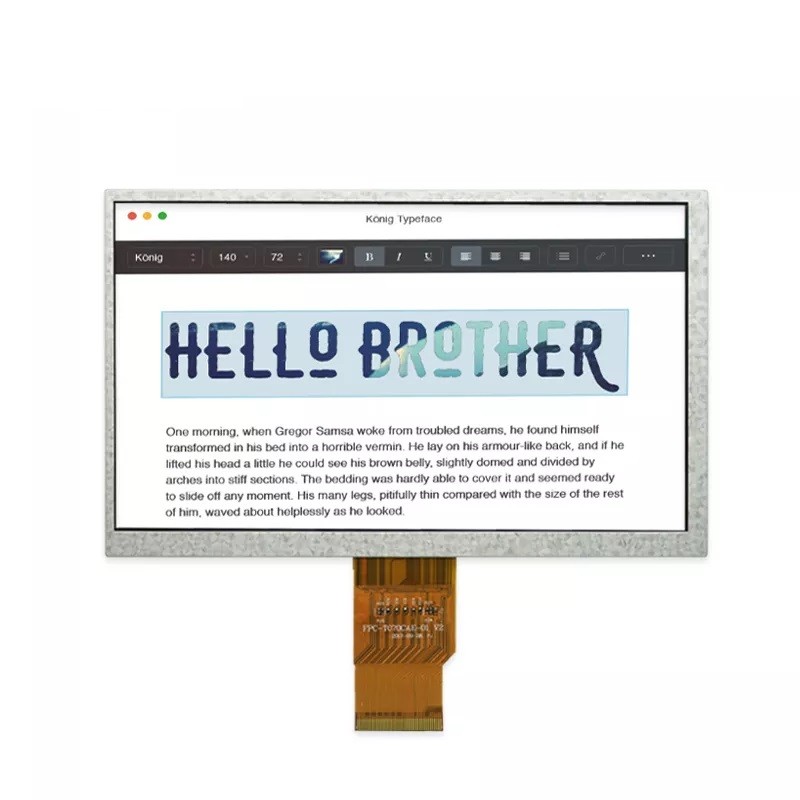

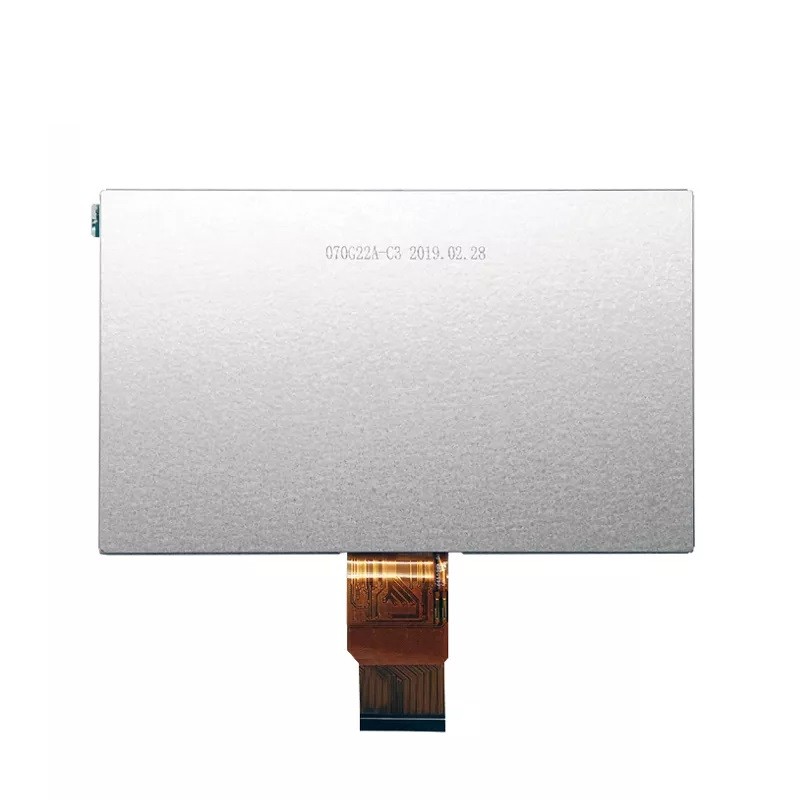

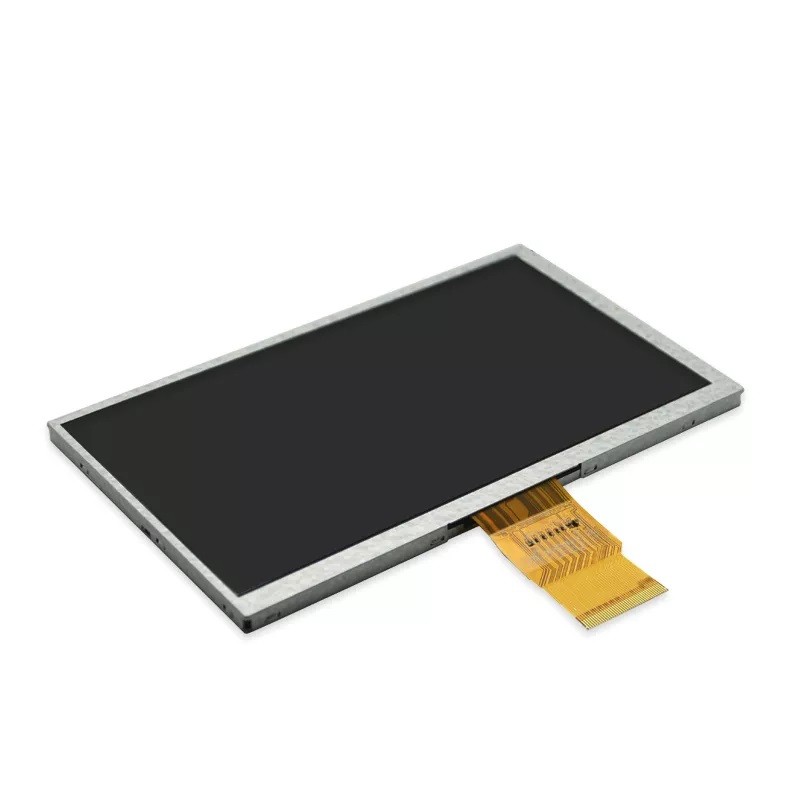

  • RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness
  • RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness
  • RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness
  • RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness
RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightnessRG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightnessRG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightnessRG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness

RG070BAHA-43 7 Inch 1024*600 TFT LCD Module high brightness

  • Product Item : RG070BAHA-43
  • Category: 7 INCH LCD SCREEN
  • Resolution: 1024*(RGB)*600
  • Luminance: 1000nits
  • LCM (W * H * D): 164.80*99.80*5.60mm
  • LCM Driver IC: HX8282+HX8696
  • INQUIRY   EMAIL
Product Description:
Feature Specification Unit
Brand Ronen -
Size 7.0 inch
Resolution 1024 x 600 dots
Pixel pitch 0.1506(H)×0.1432(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 1000 cd/m2
LCM (W * H * D) 164.80*99.80*5.60 mm
Active Area (W * H ) 154.21*85.92 mm
With /Without TP Without TP -
LED Numbers 3S10P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 24 bits RGB -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX8282+HX8696 -
