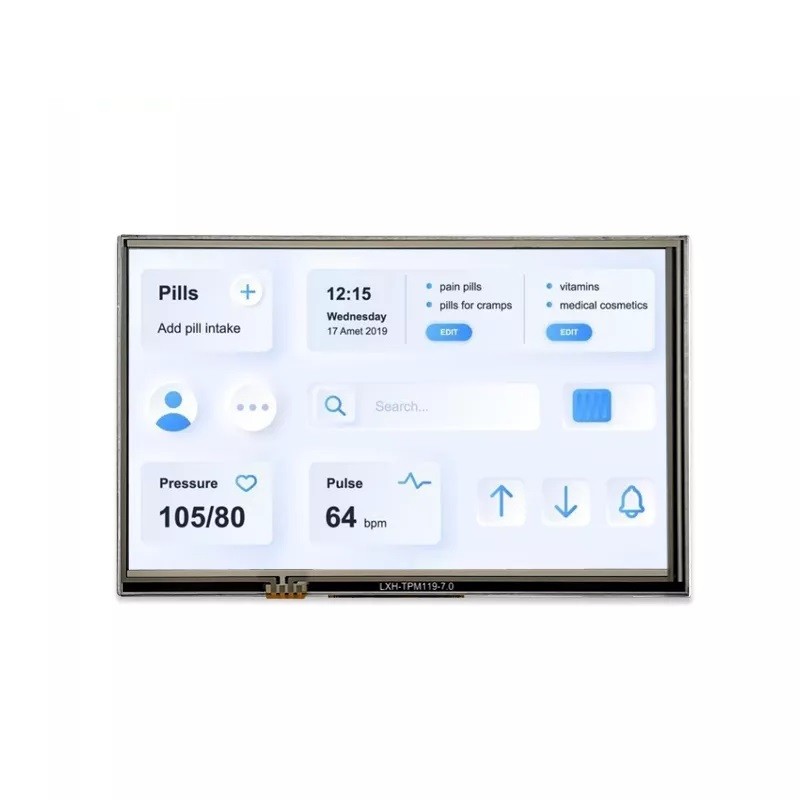

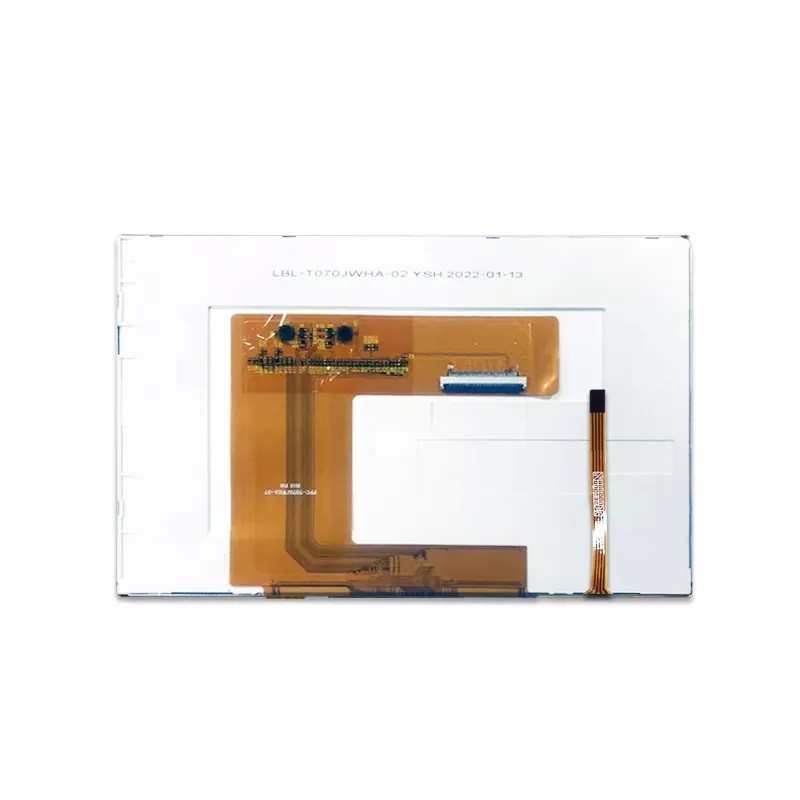

  • RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B
  • RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B
  • RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B
  • RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B
  • RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B
RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-BRG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-BRG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-BRG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-BRG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B

RG070JWHA-02P 7.0 Inch 800*480 IPS LCD Screen with IC HX5281-B

  • Product Item : RG070JWHA-02P
  • Category: 7 INCH LCD SCREEN
  • Resolution: 800*(RGB)*480
  • Luminance: 400nits
  • LCM (W * H * D): 165.00*104.60*6.30mm
  • LCM Driver IC: HX5281-B
  • INQUIRY   EMAIL
Product Description:
Feature Specification Unit
Brand Ronen -
Size 7.0 inch
Resolution 800x480 dots
Pixel pitch 0.193(H)×0.1905(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 400 cd/m2
LCM (W * H * D) 165.00*104.60*6.30 mm
Active Area (W * H ) 154.40*91.44 mm
With /Without TP Without TP -
LED Numbers 3S8P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB666 -
LCM Power Supply 3.3 V
LED  Power Supply 9.0 V
Color Depth 16.7M -
LCM Driver IC HX5281-B -
