  •  RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel
  •  RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel
  •  RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel
 RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel

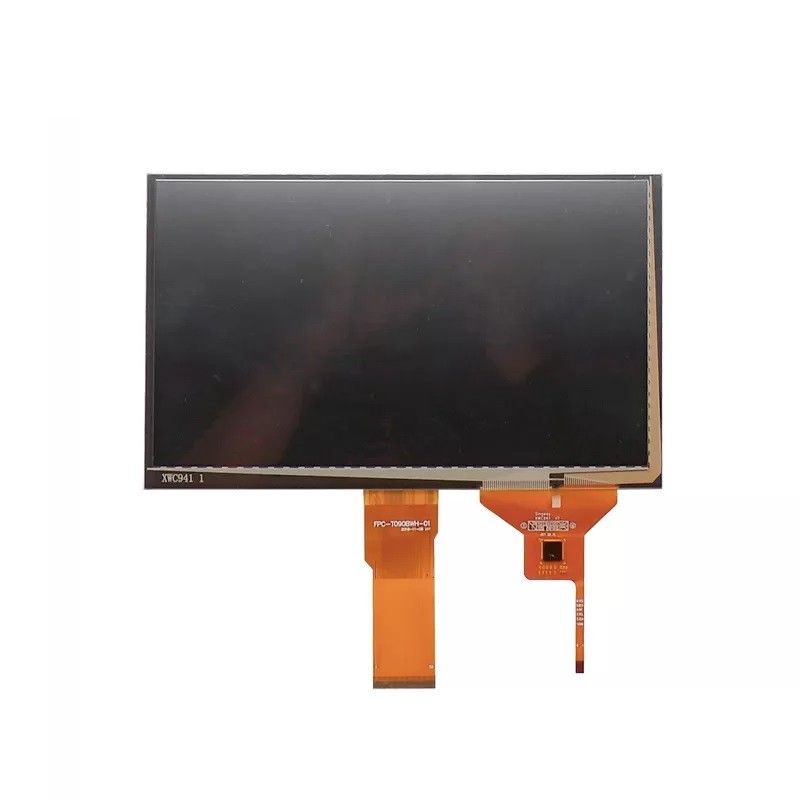

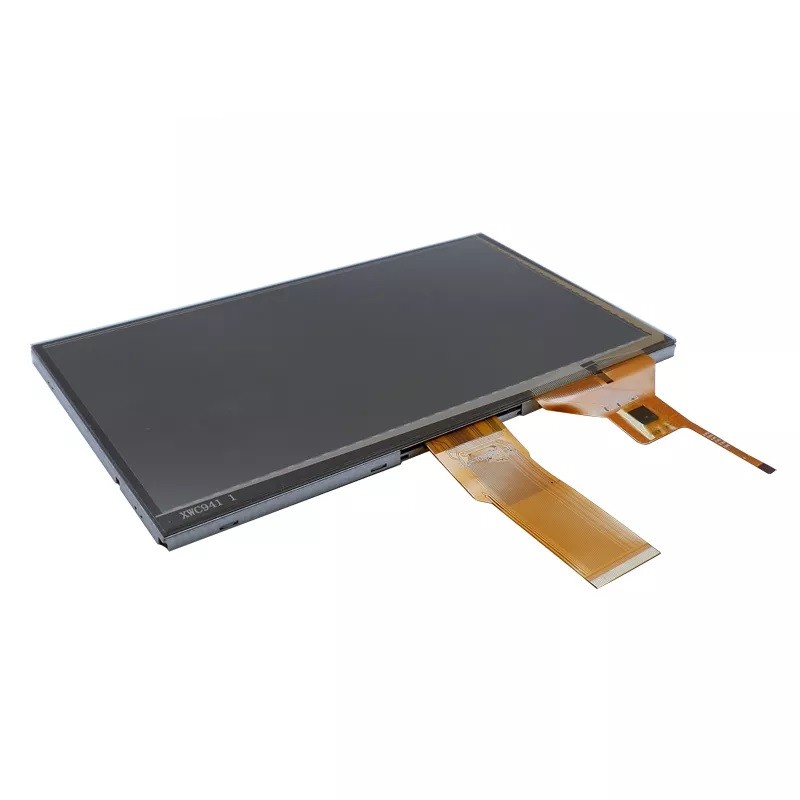

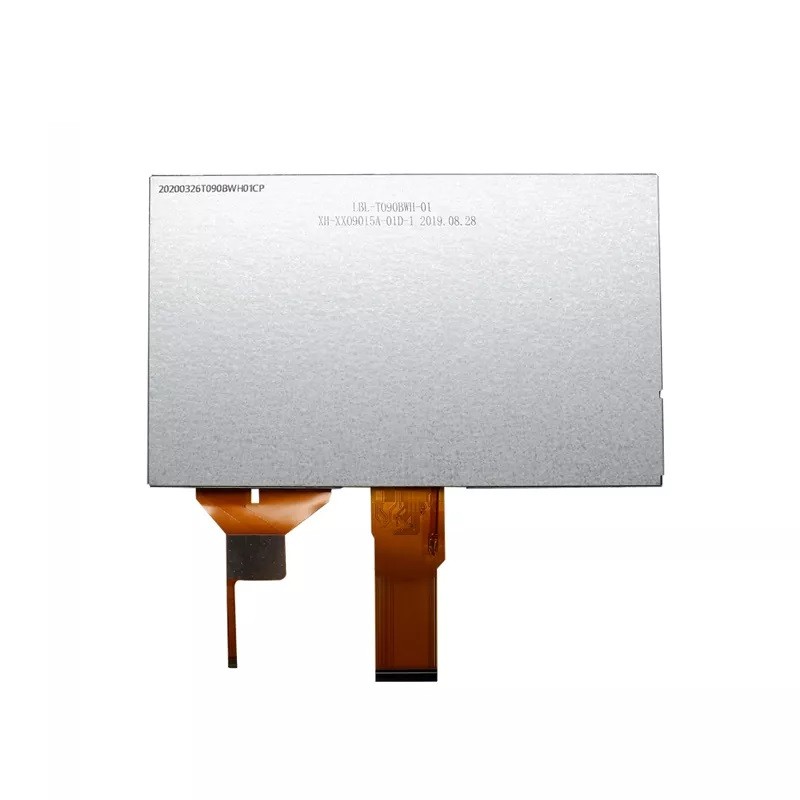

RG090BWH-01CP 9 inch 800*480 High Brightness TFT LCD Touch Panel

  • Product Item : RG090BWH-01CP
  • Category: 9 INCH LCD SCREEN
  • Resolution: 800*(RGB)*480
  • Luminance: 800nits
  • LCM (W * H * D): 210.70*126.50*7.45mm
  • LCM Driver IC: HX8264+HX8664
  • INQUIRY   EMAIL
Product Description:
Feature Specification Unit
Brand Ronen -
Size 9.0 inch
Resolution 800*480 dots
Pixel pitch 0.2475(W)x 0.2327(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 800 cd/m2
LCM (W * H * D) 210.70*126.50*7.45 mm
Active Area (W * H ) 198.00*111.70 mm
With /Without TP With CTP -
LED Numbers 4S9P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 24BIT RGB -
LCM Power Supply 3.3 V
LED  Power Supply 12.0 V
Color Depth 16.7M -
LCM Driver IC HX8264+HX8664 -
CTP Dricer IC GT928 -
