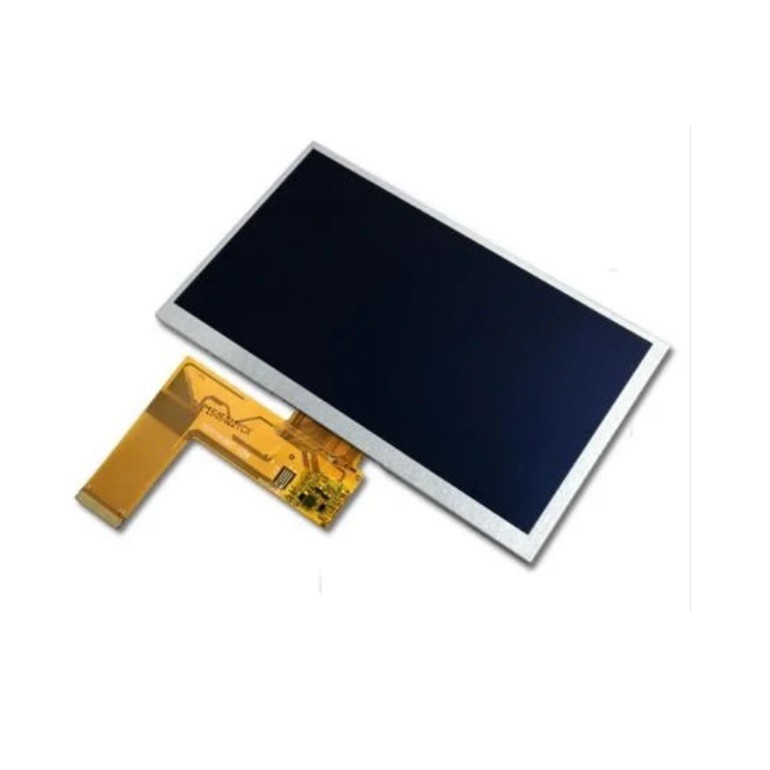

  • Rg070cqt-05 7inch TFT LCD 800*480 HD 400nits 40pin RGB  interface

Rg070cqt-05 7inch TFT LCD 800*480 HD 400nits 40pin RGB interface

Product Description:
Item Specification
LCD size 7.0 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 800 × 3(RGB) × 480
Display mode Normally White, Transmissive
Dot pitch 0.1905(W) × 0.1905(H) mm
Active area 154.08(W) × 85.92(H) mm
Module size 164.55(W) ×99.95(H) ×3.5(D) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface 24 Bit RGB (TTL)
Backlight power consumption 1.92W
Optimum viewing direction 6 O'CLOCK
Weight TBD
